Features
Boomerang offers a qualitative assortment of Wavecom GSM/GPRS Modem
which has maximum transmitting speed 115.2 Kbps & has output power of 900MHz,
the GPRS modem is checked on numerous parameters in for dispatching defect free range.
The modem is developed with premium grade material and highly modern technology
in conformity with the quality standards. The Modem Pool can be used in application, such as:
> Metering
> Fleet management
> Traffic control
> POS terminals
> Vending machines
> Freight tracking
> Security systems
> Remote monitoring

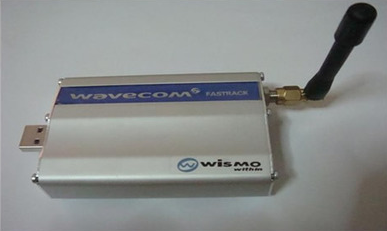

Single Port Modem Pool Specifications
Product performance: Dual-band GSM modem (EGSM900/1800MHz or EGSM900/1900MHz)
Output Power: Class4-(2W@900MHz) and Class1-(1W@1800/1900MHz)
Input voltage: 5V-32V
Input current: 5mA standby, 140 mA @ 12V calls in the state GSM900MHz 5mA standby, 100 mA @ 12V calls in the state GSM1800/1900MHz
Temperature Range:-20 degree Celcius - +55 degree Celcius working state and -25 degree Celcius - +70 degree Celcius storaging state

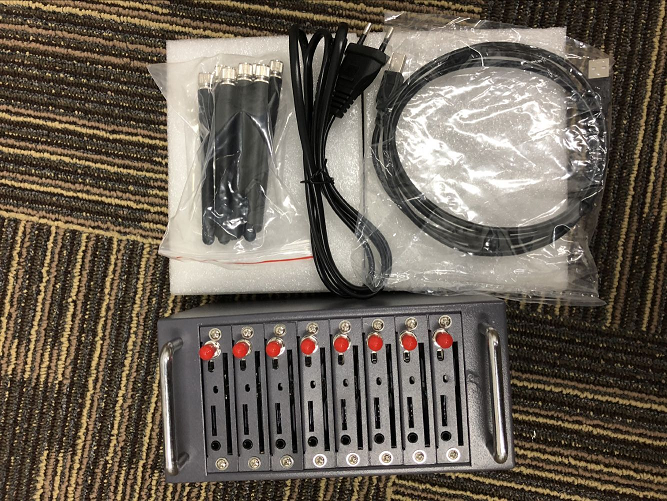

8/16-Port Modem Pool Specifications
> USB sticks GSM / GPRS pool modem Based on Wavecom industrial modules
> Wireless internet access to comply with the GSM phase2
> Cluster standard send and receive SMS
> Maximum transmission speed 115kbit / s : 3DBI SMA antenna Input
> Voltage: 100 to 240V
> Operating temperature: -20 to +60 degrees
> Storage temperature: -25 to +70 degrees
> Dual tone multi-function Frequency (DTMF)
> Send SMS 4800-5600 per hour
> Gross weight: 3kg
> Interface: USB or RS232 RJ45
Basic functions : asynchronous, transparent or non-transparent, at a maximum of 14400 bits/s
Baud rate: 300-115200 bits/s
automatic baud rate: from 2400 to 19200 bits/s
Compatible
> WAP GPRS compatible
> SMA antenna interface of the SIM card RS-232
